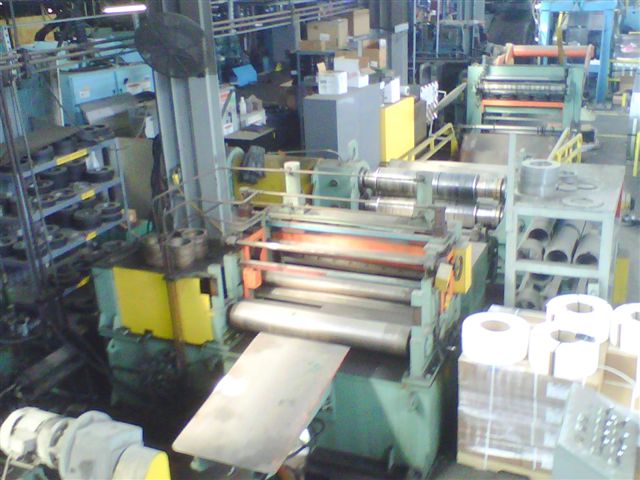

54” X 6.5” ARBORS X 20,000 LBS. TACI DRIVEN HEAD SLITTING LINE

We are pleased to offer for your consideration the following slitting line: Ref. No. 6365

EQUIPMENT SUMMARY

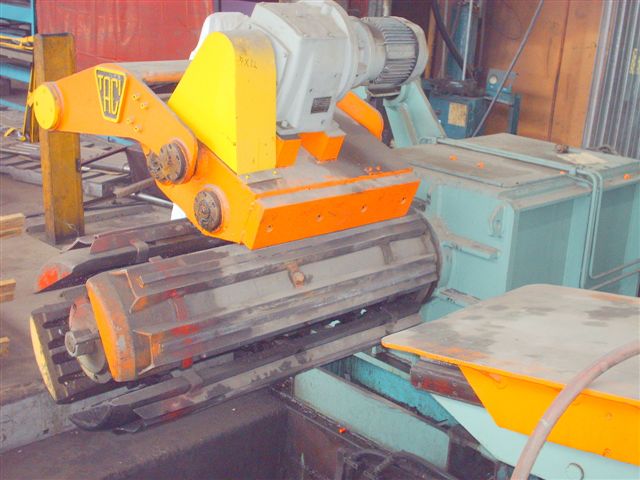

Uncoiler:
      Entry Coil Car; Pit Type with Hydraulic Control
      Overarm Holddown with Power Feed-Up
      24” Coil I.D.

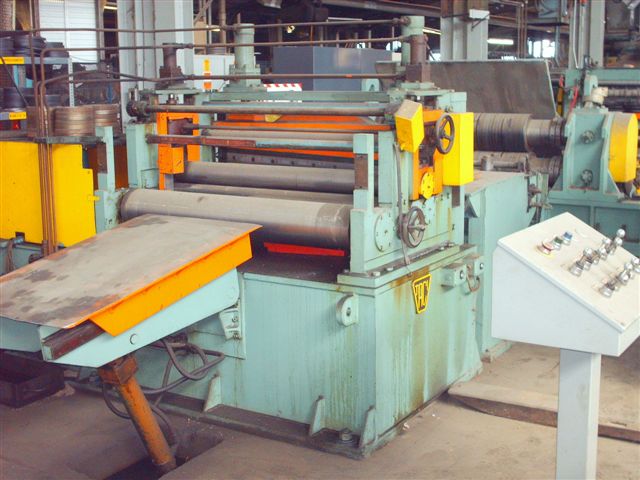

Peeler/Shear:
      Driven Pinch Rolls after Peeler Table
      Hydraulic Down Acting Shear for Cropping

Transfer Table:

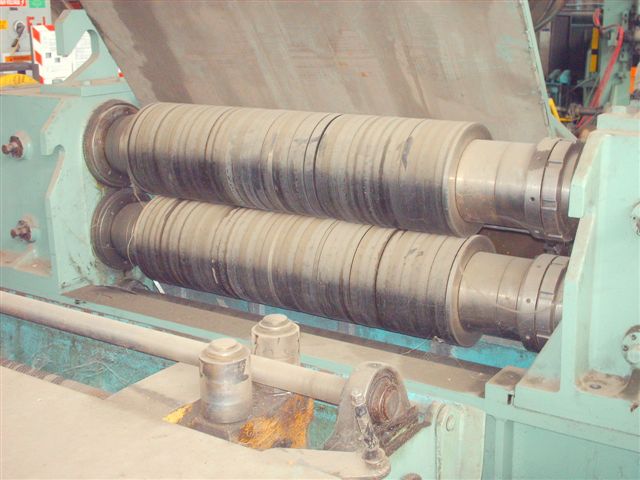

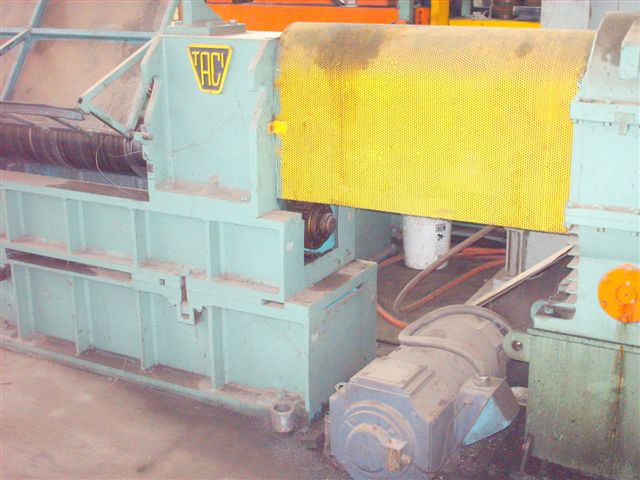

Slitting Head:
      6.5” x 54” Arbors
      40 H.P. D.C. Drive Powering the Slitter

Pit Transfer Table:
      With Hydraulic Lift

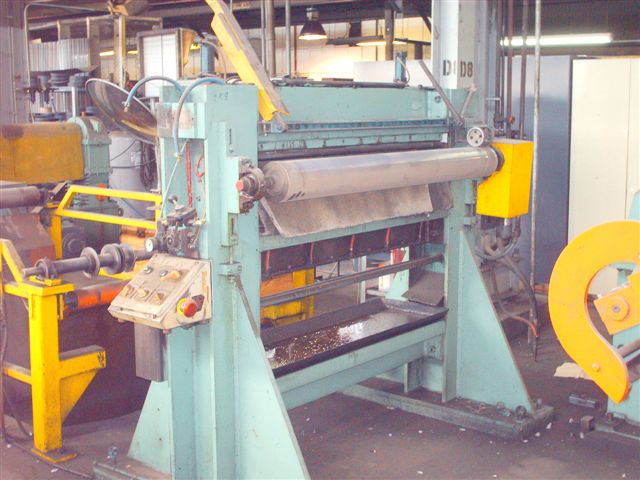

Tension Stand:
      Drag Wipe with Pneumatic Adjustment

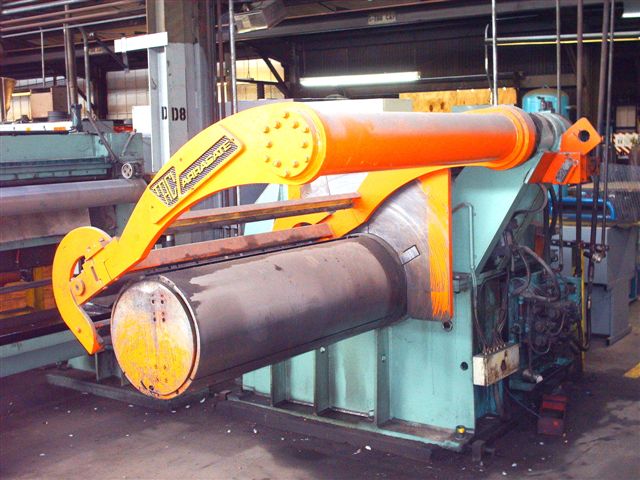

Recoiler:
      20” I.D. Drum with Gripper Slot
      Overarm Holddown with Strip Separator
      Hydraulic Push-Off
      125/250 H.P. Motor

Tooling:
      A very large assortment of knives, spacers and rubbers.

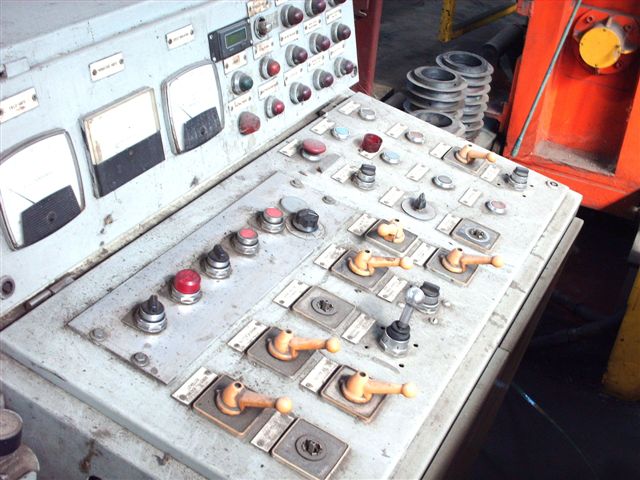

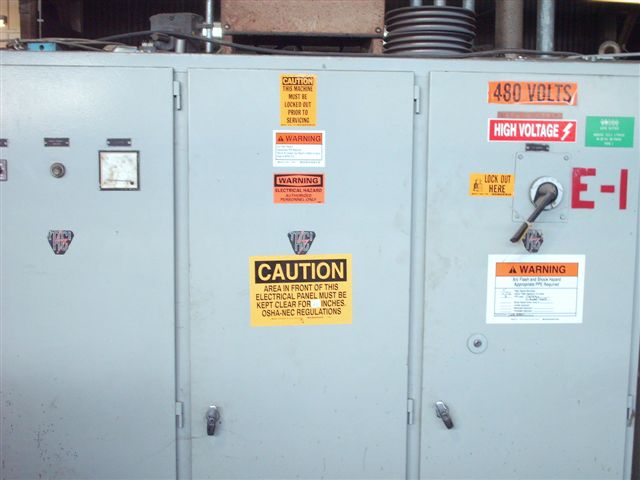

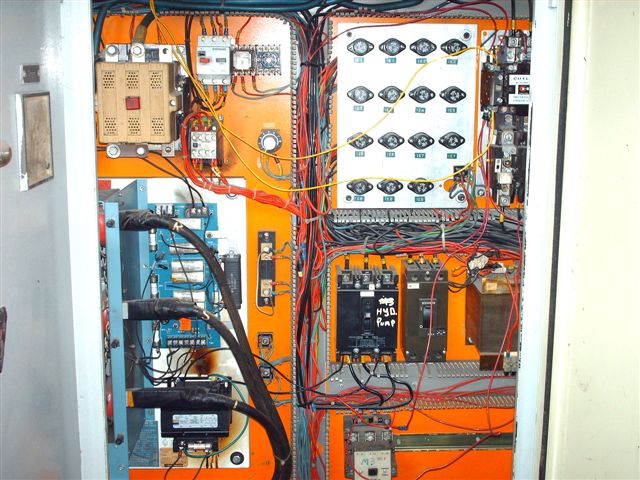

Electrics:
      Solid State Eurotherm/Parker Drive
      40 H.P. on the Slitting Head
      125/250 H.P. on Recoiler

Condition:  As is.
