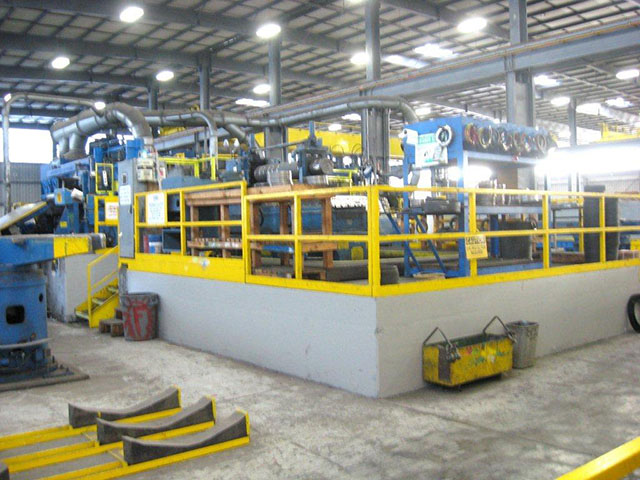

ONE USED BRANER 60” X 7” ARBORS X 40,000 LBS. DUAL HEAD SLITTING LINE

We are pleased to offer for your consideration the following slitting line: Ref. No. 6503

SPECIFICATIONS

Manufacturer:                            Braner
Hand of Operation:                    Left to Right
Coil O.D.:                                 72”
Coil I.D.:                                   18” to 20”, 29” with Risers
Coil Width:                                60”
Arbor Size:                                7”
Line Speed:                              275/550/950 FPM @ 72”OD

EQUIPMENT SUMMARY

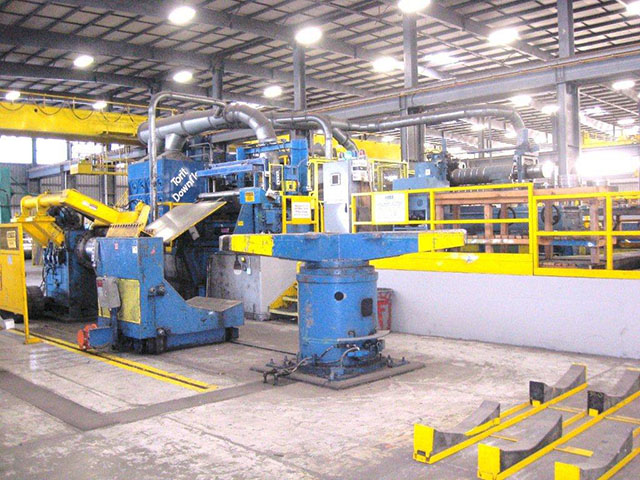

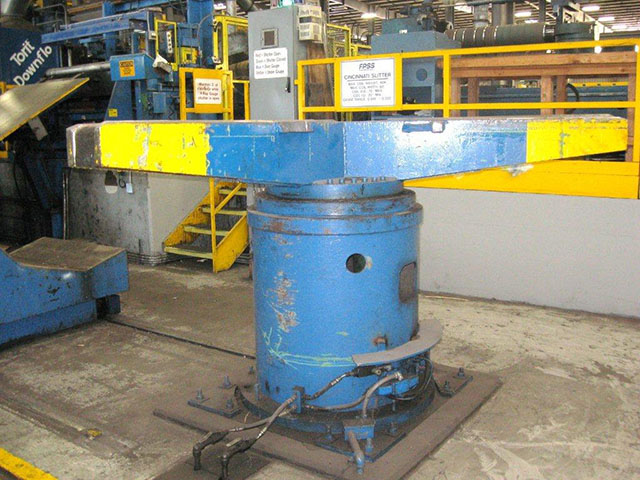

3-Arm Entry Turnstile:
   Hydraulic Rotation
   Channeled Arms for “C” Hook

Entry Braner Coil Car:
   L-Floor Type
   Capacity: Maximum - 40,000 Lbs.
   Self-Contained Hydraulics with 10 H.P. Motor
   Powered Lift & Traverse

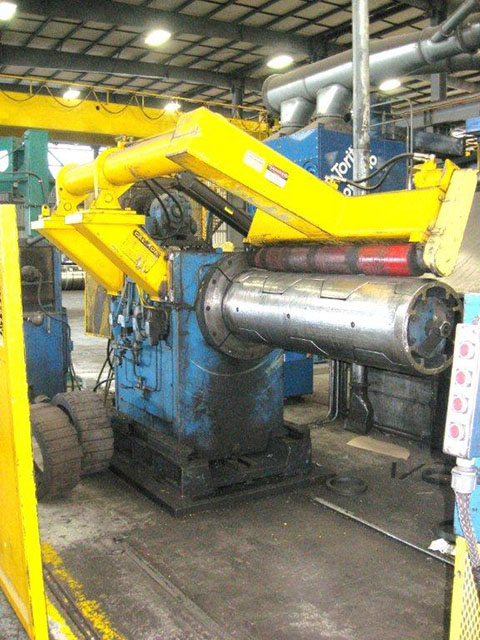

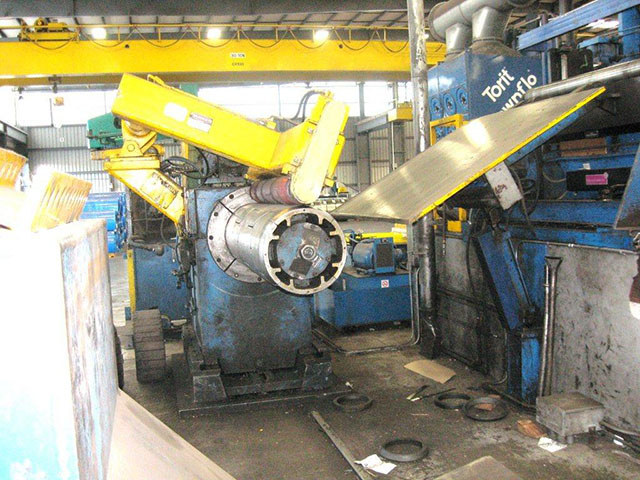

Single Arm 40,000 Lbs. Uncoiler:
   Load Capacity: Maximum 40,000 Lbs.
   Coil OD:  Max. 72”
   Coil ID:  18” to 20”, 29” with Risers
   Single Mandrel with Hydraulic Expansion
   Driven Strip Feed-Up
   Sliding Base
   Hold Down With Powered Snubber

Hydraulic Peeler Blade:

Driven Entry Pinch Roll:

Strip Edge Guides:

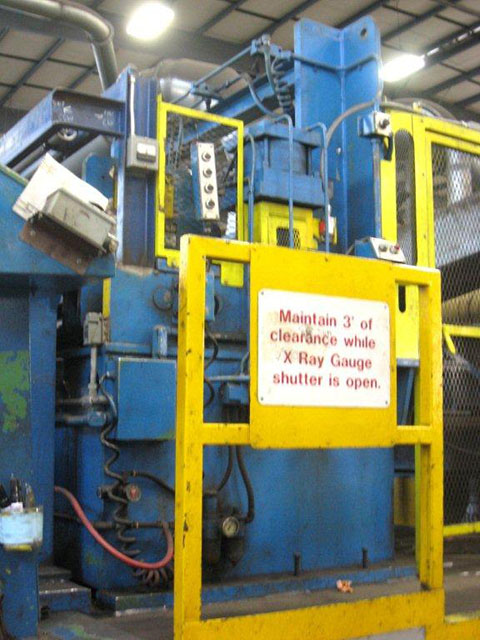

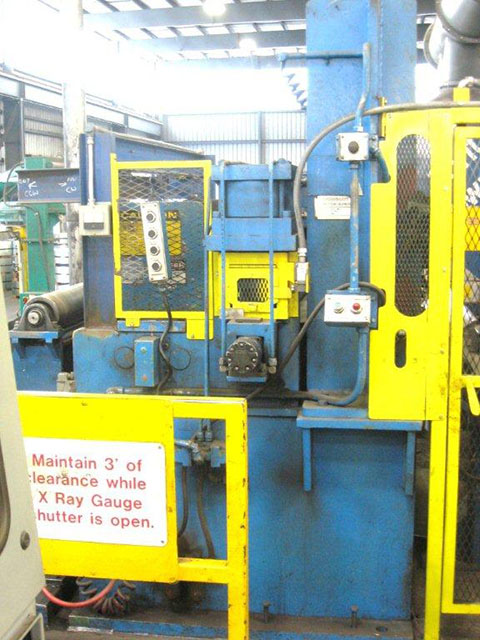

   Thickness Gauge Non Contact AGT400
   Hydraulic Crop Shear

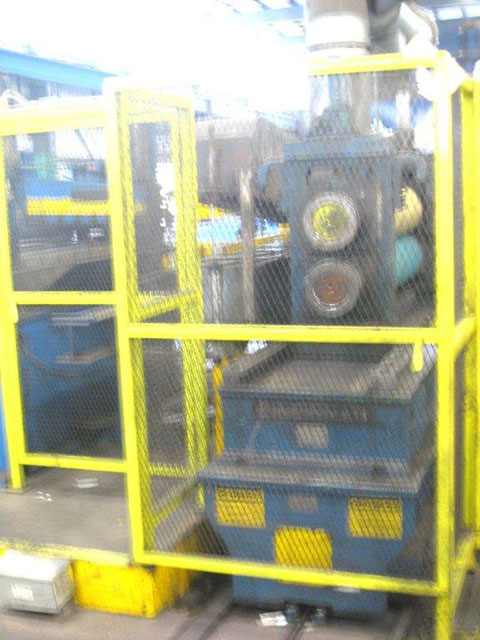

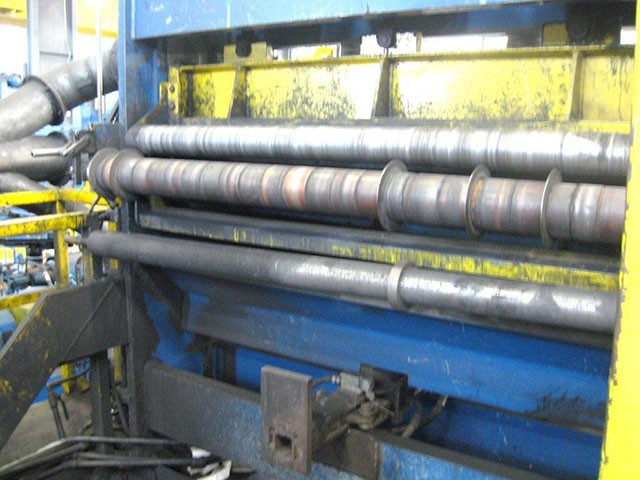

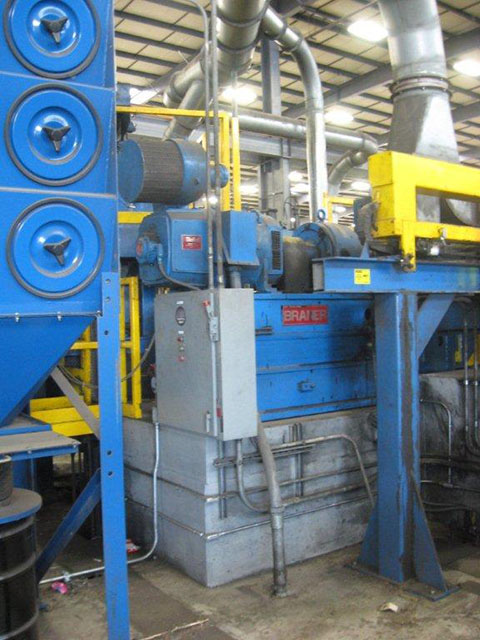

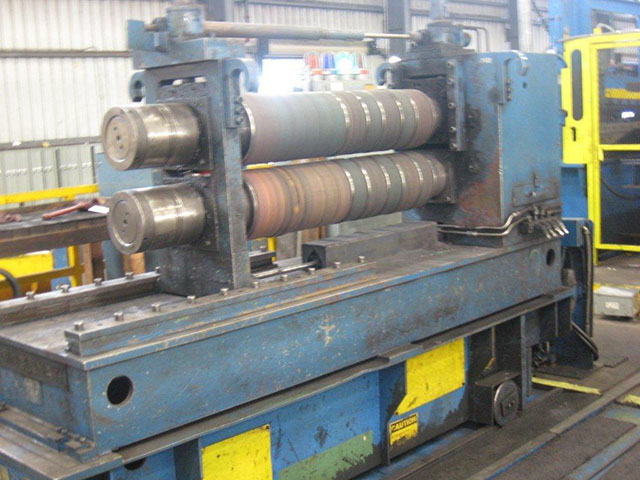

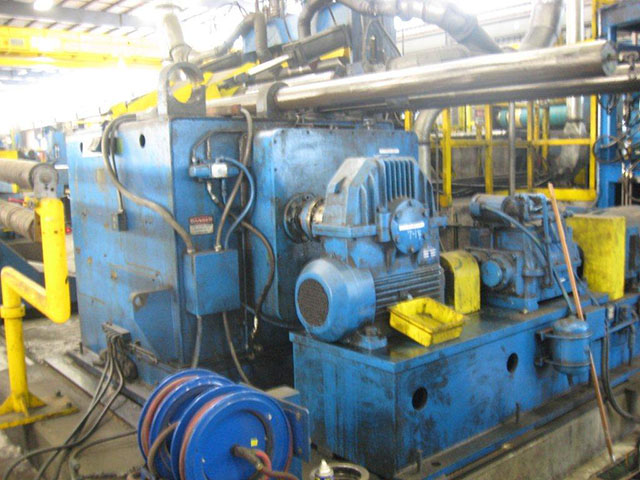

Braner Removal Dual Slitter Heads:
   Injector Type
   7’ Arbor Shaft Size
   Over The Arbor Bearing Design
   Manual Top Arbor Adjustment
   125 HP DC 500 V Motor -850/2250 RPM with AC Feed Up Drive
   Late Model Upgraded Drive

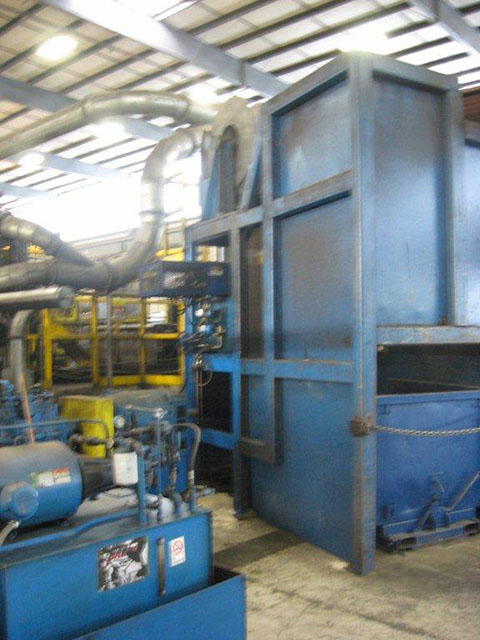

Oscillating Scrap Winder:

Cross Pit Looping Table:

Tension Control with Separator:

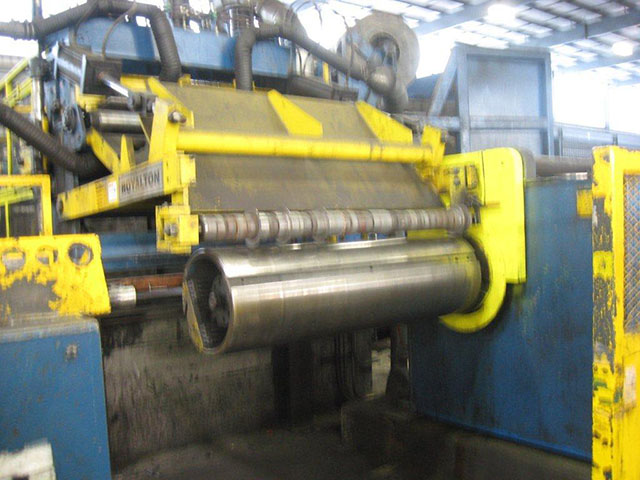

Braner Recoiler:
   66” Mandrel Face
   20” Coil I.D.
   Powered Expansion & Grip
   Hydraulic Push-Off
   Over Arm Separator
   125 HP DC Motor – 1450/1750 RPM
   Reducer 31.39: 1 Ratio

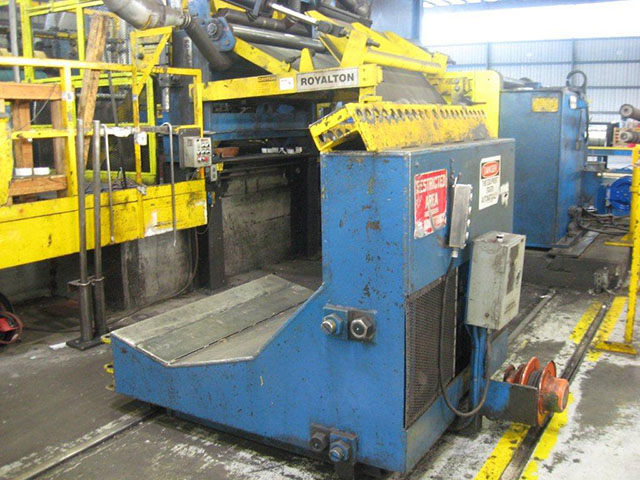

Exit Coil Car:
   Load Capacity:  Maximum - 40,000 Lbs.
   L Floor Type
   Self-Contained  Hydraulics
   Powered Lift & Traverse

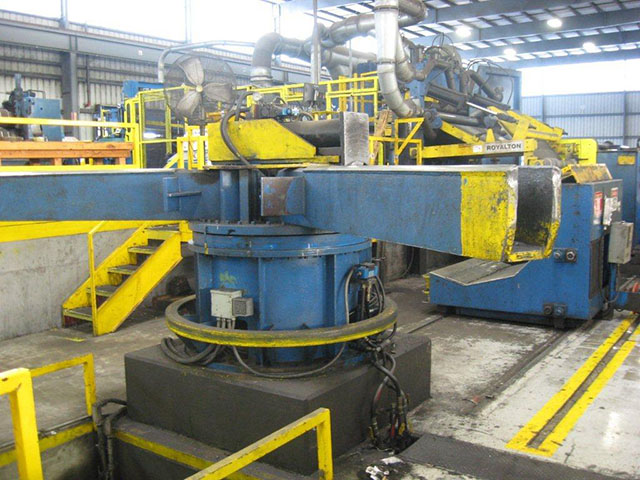

Exit Loopco 3-Arm Turnstile:

   Hydraulic Rotation
   Hydraulic Push Off
   Channeled Arms for “C” Hook

Electrical Controls:

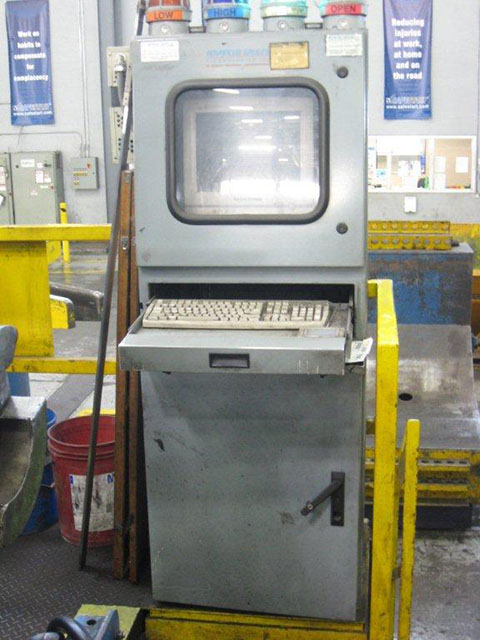

   Main Operator Console
   DC & AC Mill Drive Cabinets

Hydraulics:

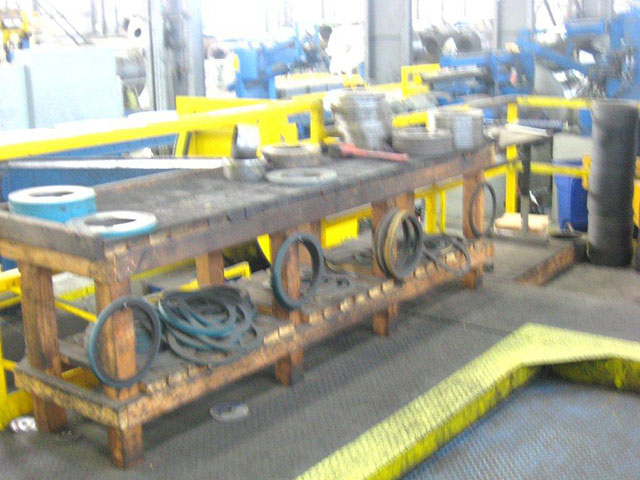

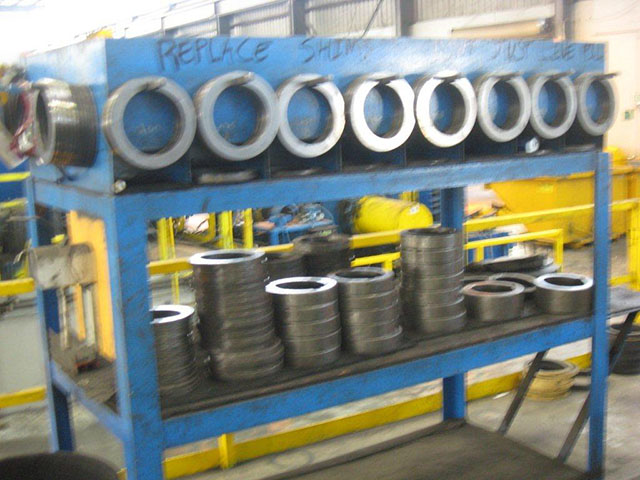

Tooling:
   Shimless Tooling with Edgemaster Softwarre Program
   Rubbers, Spacers & Separators

Condition:  Very Good, still under power and can be inspected in operation.
