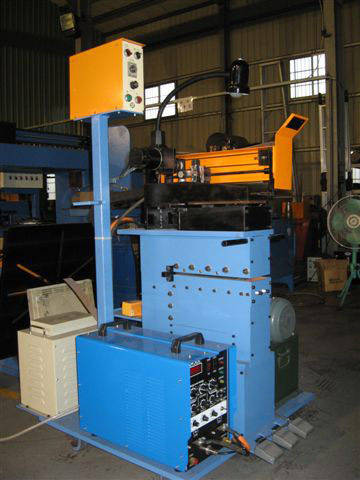

12” x .177” NEW FMS SWO-320 SHEAR & END WELDER

We are pleased to offer for your consideration the following strip welder: Ref. No. 6240

Inlet Power: Three Phase, 440 V or 460 V, 60 Hz.
Strip Width: .984” to 12.5” (25 mm to 320 mm)
Strip thickness: .031” to .177” (.8 mm to 4.5 mm)
 Clamping System: Oil Hydraulic
Shearing System: Oil Hydraulic
Oil Hydraulic power: 1.5 KW,35~50kg/cm2

The moving orbit of base: The air cylinder pushes a machine set into back of work position, route of travel 1000 mm.
The welding gun moving: DC MOTOR 40W Driver

B). Standard Accessory:
               1. Inverter style DC TIG: 1 UNIT
                              Model: T-301
                              Welding Current: 5~300A

               2. Including:
                              a) WP-26 welding gun. 1 UNIT
