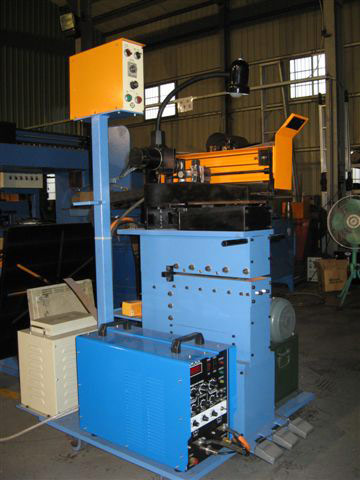

NEW FMS SWO-250 SEMI-AUTOMATIC SHEAR END AND WELD MACHINE

We are pleased to offer for your consideration the following shear and end weld machine:  Ref. No. 6241

SPECIFICATIONS

Type:                           Portable Type, Pull Away on Track
Inlet Power:                Three phase, 440 V or 460 V, 60 Hz.
Strip Width:                1” to 10” (25 mm to 250 mm)
Strip thickness:            .031” to .157” (0.8 mm to 4.0 mm)
Clamping System:       Oil Hydraulic
Shearing System:        Oil Hydraulic
Oil Hydraulic power: 1.5KW,35~50kg/cm2

Travel of Base:                        33” Approx. by Air Cylinder
Welding Gun is driven by:      40Watt D.C. Motor

B). Standard Accessory:
1. Lincoln DC TIG:                                        1 UNIT
Welding Current: 5~300A

  1. Including :

a) WP-26 welding gun.                1 UNIT

Condition:  New.
