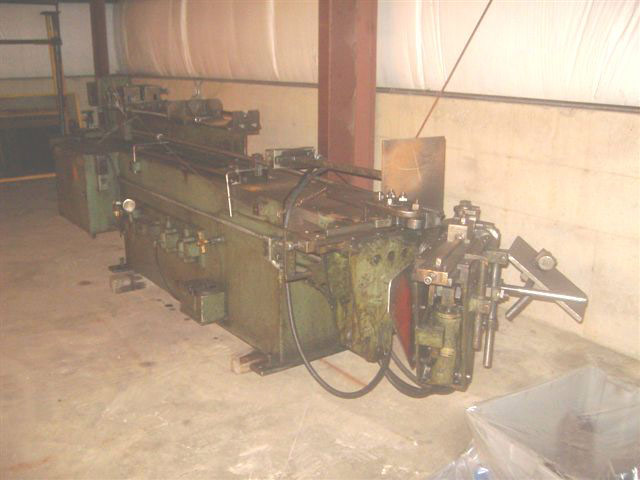

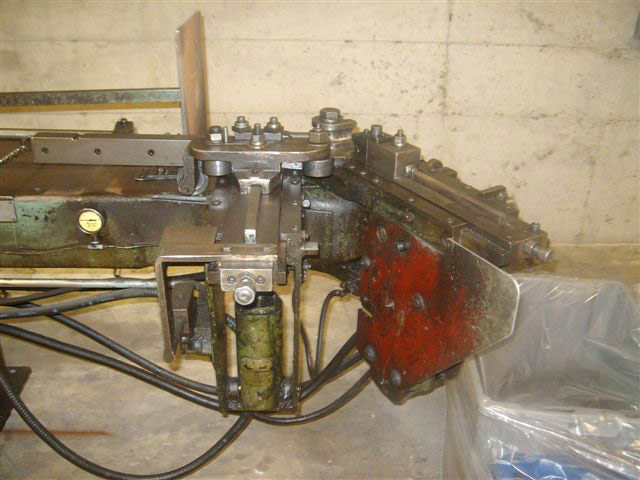

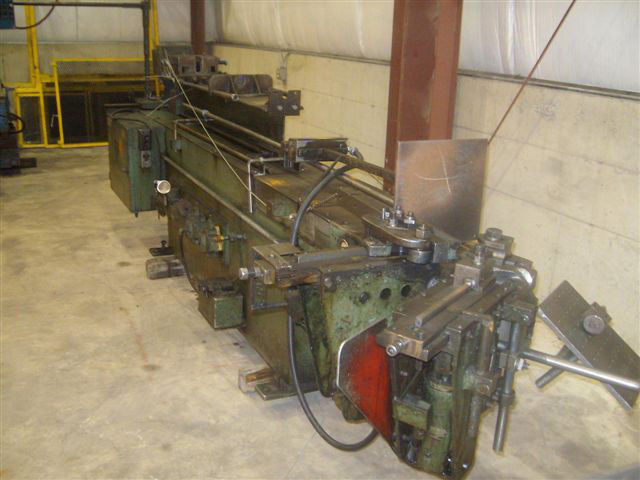

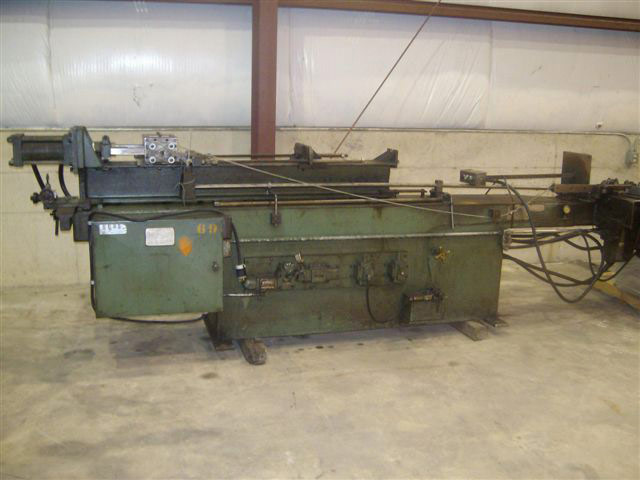

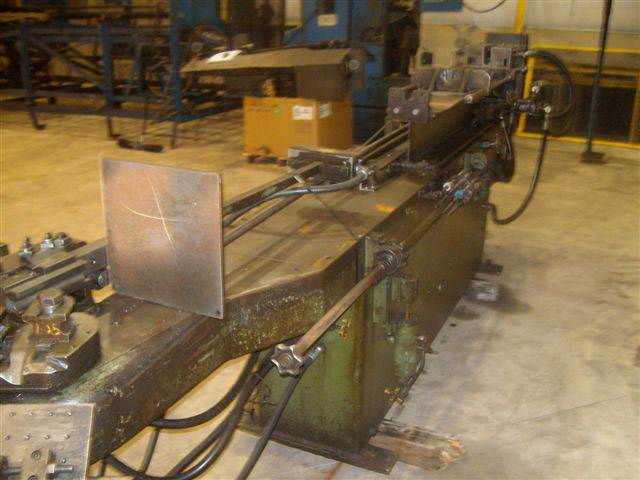

3” PINES NO. 2A HYDRAULIC BAR & TUBE BENDER

We are pleased to offer for your consideration the following bender: Ref. No. 6217

SPECIFICATIONS

Model: 2A
Capacity Steel Pipe (Schedule 80): 2”
Capacity Non-Ferrous Tube (Y.P. to 25k PSI): 3” x .188”
Capacity Steel Tube (Y.P. to 40k Psi): 3” x .109”
Capacity Stainless Tube (Y.P. to 60k PSI): 3” x .065”
Capacity Square Tube (Mild Steel): 2-1/2” x .083”
Capacity Round Bar (Mild Steel): 1-7/8”
Capacity Square Bar (Mild Steel: 1-11/16”
Maximum Radius: 12”
Maximum Bend Angle: 180 Degree + Overbend
Maximum Tube Length over Mandrel: 7'5”
Bending Rotation: Clockwise
Average Bending Arm Speed: 5-1/2 RPM
Operating Pressure: 2000 PSI
8-Position Degree Of Bend Selector: Yes
Hydraulic Mandrel Extractor & Clamping: Yes
Bijur Lubrication: Yes
Motor: 7-1/2 Horsepower

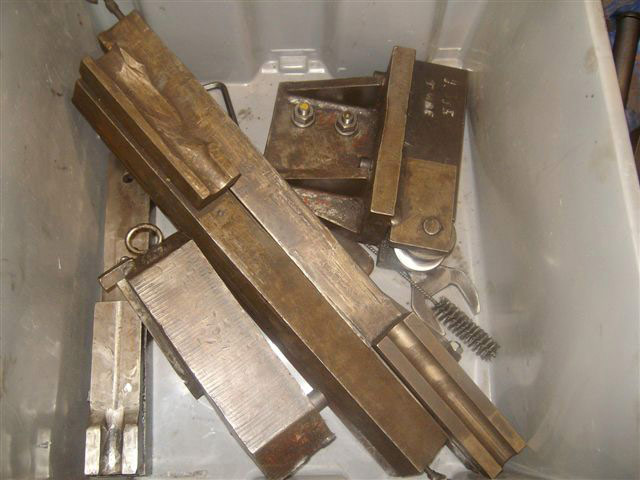

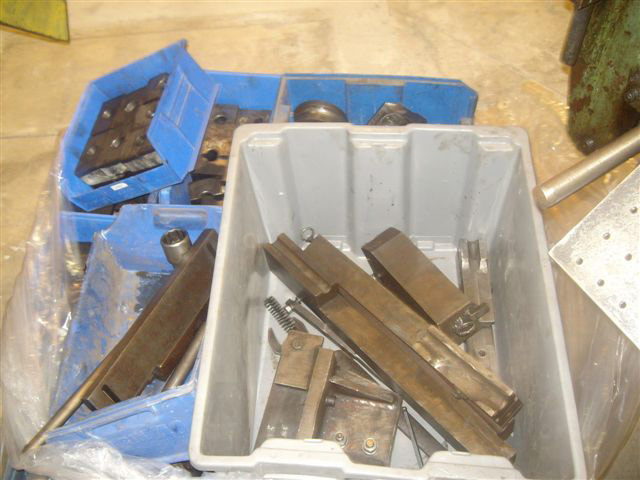

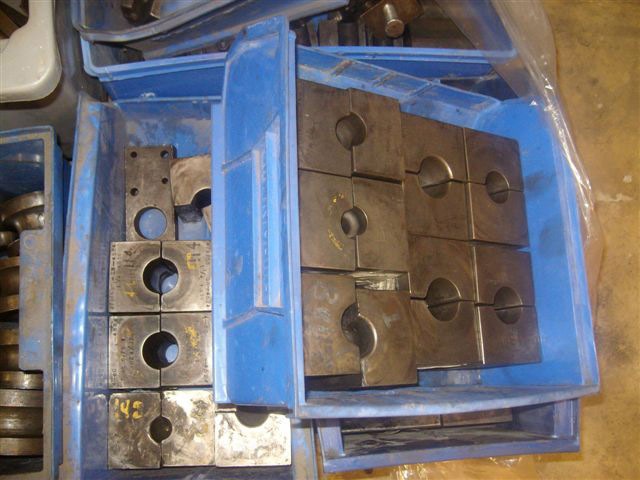

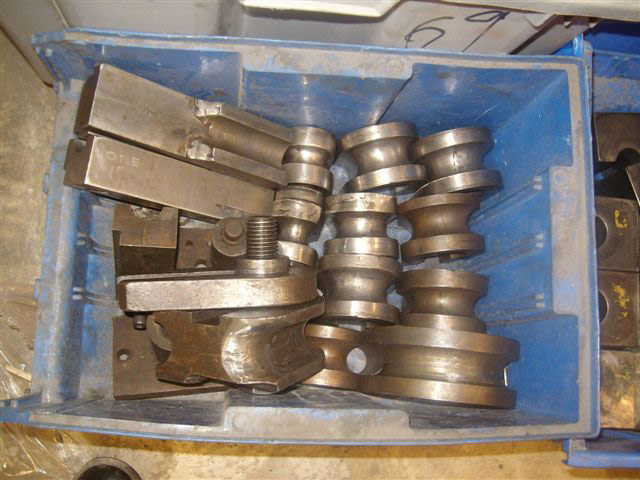

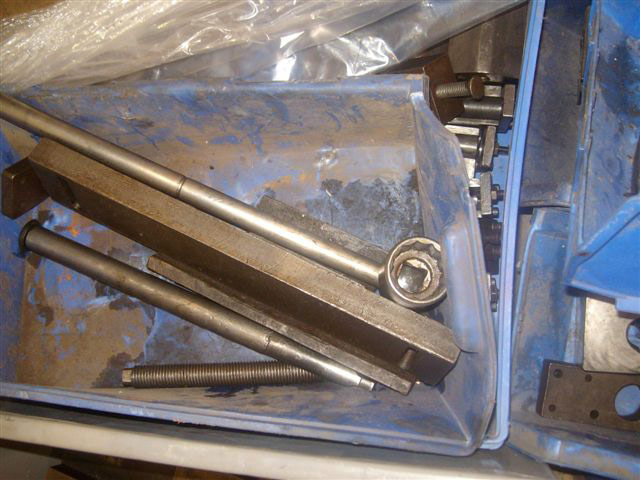

Tooling: Approximately 10 Sets Of Tooling.
