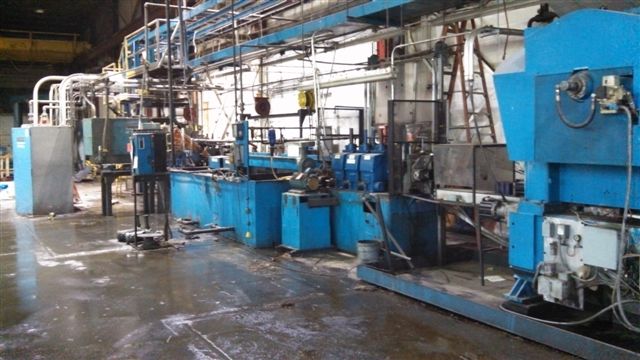

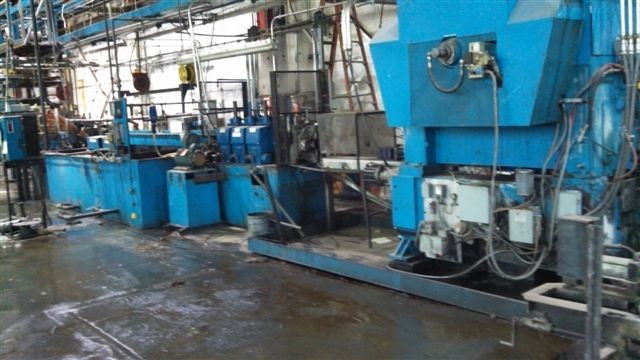

2-1/2” YODER M-2 TUBE MILL

We are pleased to offer for your consideration the following tube mill: Ref. No. 6409

SPECIFICATIONS

Hand of Operation:                             Right To Left
Model Number:                                   Model M2
Shaft Diameter:                                   2”
Maximum Tube Diameter:                  2-1/2”
Minimum Tube Diameter:                   .500”
Maximum Wall:                                  .095” Mild Steel
Minimum Wall:                                   .018” Mild Steel

EQUIPMENT SUMMARY

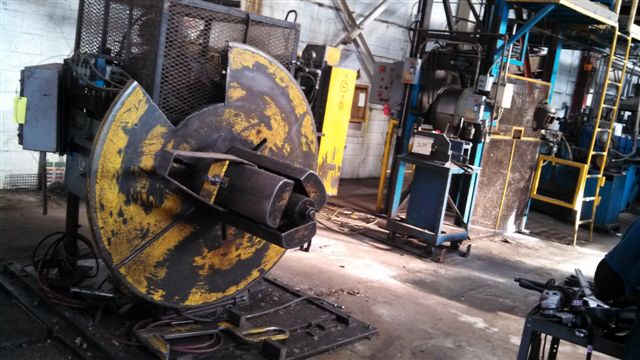

Uncoiler:
      10,000 Lbs. Double End Uncoiler
      Pneumatic Breaking
      Manual Rotation
      Manual Expansion
      Full Back Plate and Keepers

Shear & End Welder:
      Portable Shear & End Welder
      Manual Clamping
      Manual Sheer
      Welding is Manual

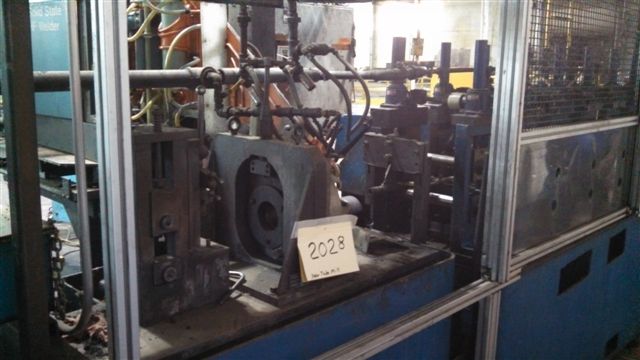

Weld Area:
      1 – Tube Seam Guide with 2-Axis Adjustment
      1 – Thermatool ® Solid State 150 KW welder
      1 – Weld Bead Scarfing Station
      1 – Weld Bead Scrap Winder

Coolant Zone:
      1 – 15’ Trough Type Coolant Zone with Full Quench

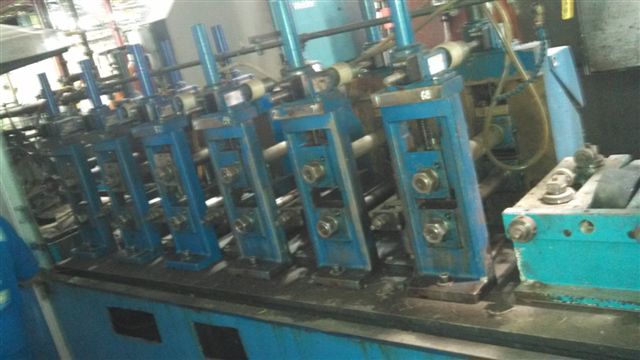

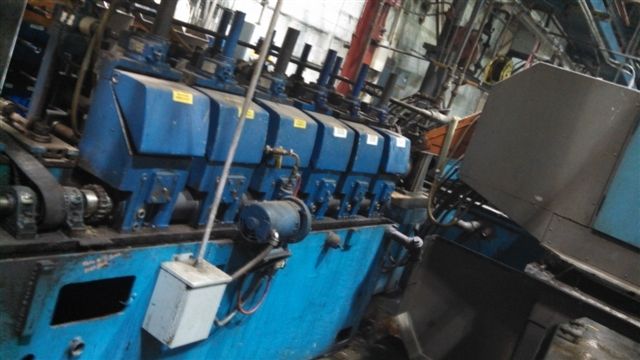

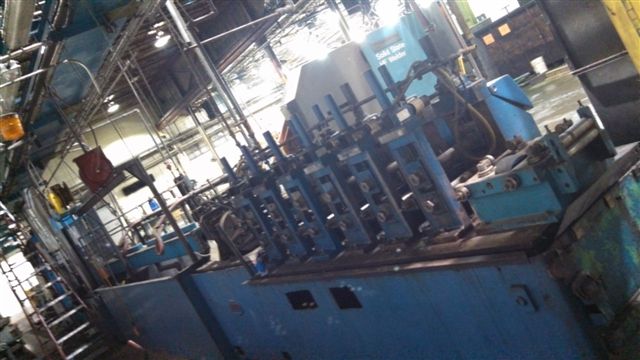

Sizing Mill:
      3 – Driven Yoder M2 Sizing Stands with 2” Shafts (Single Point Adjustment)
      3 – Yoder Idle Sideroll Stands
      1 – Encoder Station for Digital Length Control
      1 – Lemont 4-Roll Straightening and Squaring Head

Cut-Off:
      1 – Alpha/Thermatool® Flying Cut-Off Press with Double cut dimple free die set
      1 – Digital Length Control System with Programmable Controls
      1 – Run-Out Table with Reverse Dump

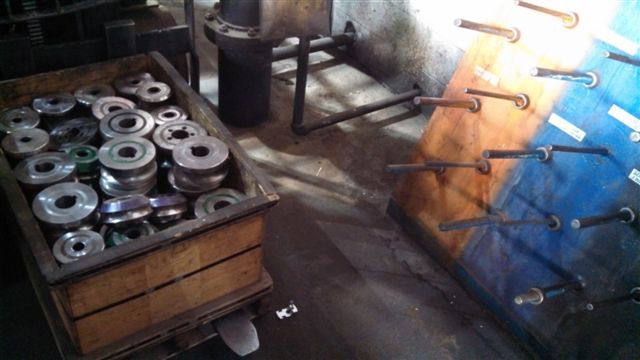

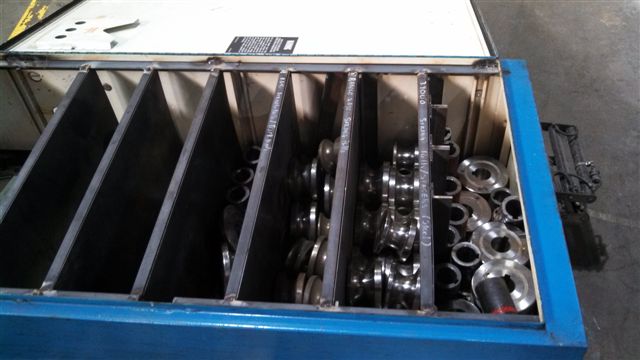

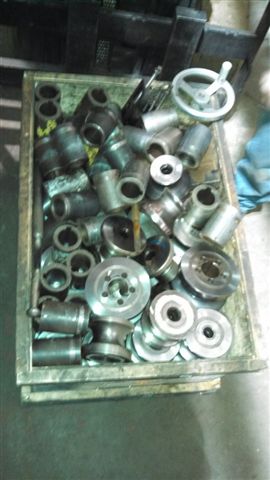

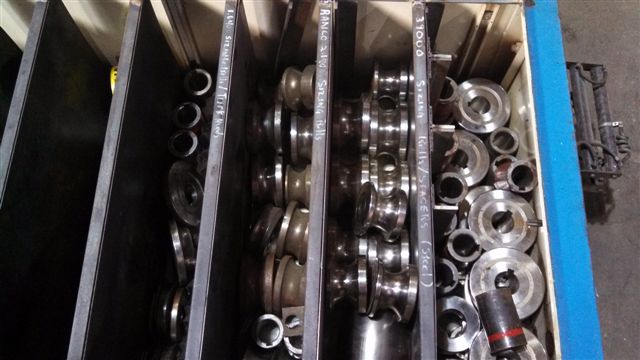

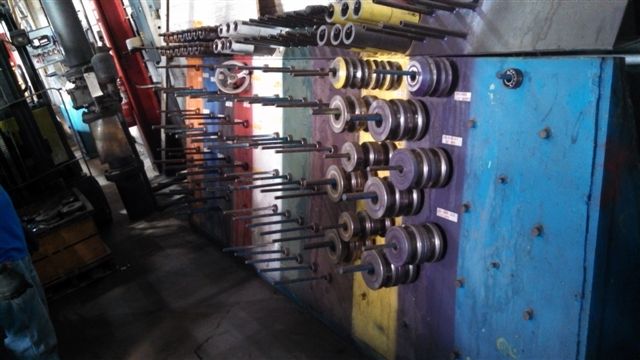

Tooling:
     (Not Inventoried)

Drive:
Solid State Drive and Controls for 2 40 H.P. A.C. Motors

Condition:  As is.



**NOTE:  Upon your request, Freedom Machinery can exchange components on this tube mill; such as, the cut-off, welder, and uncoiler for other components we have in stock.  The price of the tube mill will change accordingly.
