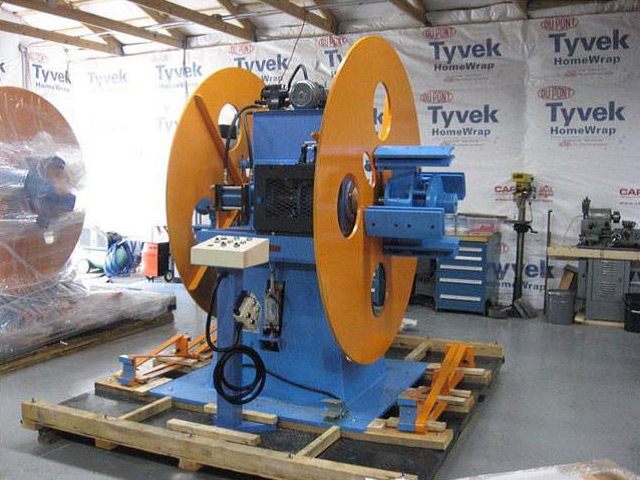

NEW FMS 10,000 LBS. DOUBLE ARM UNCOILER (MODEL UCD-5-300M)

We are pleased to offer for your consideration the following NEW uncoiler:  Ref. No.  M667

SPECIFICATIONS

Maximum Load Capacity: 10,000 Lbs. on Each Side
Coil I.D.: 20” (508 mm)
I.D. Expansion Range: 18” (458 mm) – 22” (558 mm)
Coil O.D.: Maximum – 72” (1830 mm)
Maximum Strip Width: 12” (305 mm)
Mandrel Face: 16.1” (410 mm)
Mandrel Materials: S45C
Mandrel O.D.: 5.9” (150 mm)
Hydraulic Cylinder I.D.: 4.92” (125 mm)
Piston Size: 2.36” (60 mm)
Piston Stroke Range: 1.96” (50 mm)
Coil Keepers: 4 pieces on each side
Hydraulic Unit Specifications: 2 H.P. 70 kg/cm2 (1400 PSI)
Air Pneumatic Power Specifications: Maximum – 100 PSI

EQUIPMENT SUMMARY

4-Leaf, Wedge Type, Hydraulic Mandrel Expansion
Manual Strip Feed Up
Heavy Duty 2-Stage Air Brake; Drag/Brake

  1. Manual Total Brake Release Valve for Easy Strip Threading

Foot Pedal Release Manual Rotation with Pneumatic Position Stop Mechanism
Full Back Plates
Coil Keeper; Wrench Free Type, 4 Pieces Each Side
Control Box
Operator Console with Wired Remote Control Pendent

Condition:  NEW
